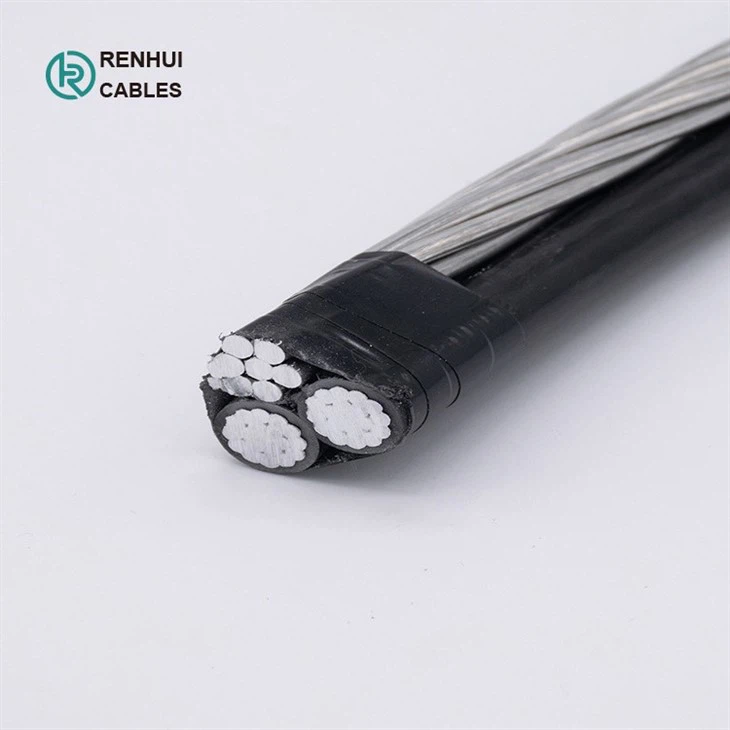

Aluminium Conductor XLPE Insulated Hlau ABC Cable
Peb tsim cov ABC Hluav Taws Xob Cable siv rau cov nyiaj siv ua haujlwm (duplex, triplex, quadruplex) hauv IEC tus qauv, ASTM, BS, NF C 33-209 tus qauv.
 |
 |
 |
Hom Kev Pabcuam Drop Cable:
Kev Pabcuam Drop Cable (ABC CABLE) suav nrog peb hom:
Duplex Service Poob
Triplex Service Drop
Quadruplex Service Drop
Cov kab hluav taws xob tuaj yeem tsim nws qhov kev tsim kho yog theem tus neeg xyuas pib nrog nruab nrab liab qab tus neeg xyuas pib lossis theem tus neeg xyuas pib nrog insulated nruab nrab tus neeg xyuas pib, thiab lwm yam. Thiab peb tseem tuaj yeem tsim cov cables raws li kev thov ntawm cov neeg siv khoom.
Paub meejed Taw qhia txog Kev Pabcuam Drop Cable
1 Duplex Service Poob
Daim ntaub ntawv: Txhawm rau muab 120 volt aerial kev pabcuam rau kev pabcuam ib ntus ntawm qhov chaw tsim kho, sab nraum zoov lossis kev teeb pom kev zoo. Rau kev pabcuam ntawm 600 volts lossis qis dua ntawm tus neeg xyuas pib kub ntawm 75 qhov siab tshaj plaws.
Kev tsim kho: Concentric strand los yog compressed 1350-H19 conductor, polyethylene los yog cross linked polyethylene rwb thaiv tsev, concentric strand AAC, ACSR, los yog 6201 alloy nertral messenger.
2 Triplex Service Drop
Daim ntawv thov: Txhawm rau muab lub zog los ntawm ulility's kab mus rau cov neeg siv khoom lub taub hau huab cua. Rau kev pabcuam ntawm 600 volts lossis tsawg dua (theem mus rau theem) ntawm qhov ntsuas kub ntawm 75 qhov siab tshaj plaws rau PE rwb thaiv tsev lossis 90 siab tshaj plaws rau XLPE rwb thaiv tsev.
Kev tsim kho: Concentric strand los yog compressed 1350-H19 conductor, polyethylene los yog cross linked polyethylene rwb thaiv tsev, concentric strand AAC, ACSR, los yog 6201 alloy nertral messenger.
3 Quadruplex Service Poob
Daim ntaub ntawv: Siv los muab 3 theem fais fab, feem ntau los ntawm tus ncej-mounted transformer mus rau kev siv lub taub hau kev pab cuam qhov twg kev sib txuas rau cov kev pab cuam nkag cable yog tsim. Yuav tsum tau siv nyob rau hauv voltages ntawm 600 volts los yog tsawg theem mus rau theem thiab ntawm tus neeg xyuas pib kub tsis tshaj 75 rau PE insulated conductors los yog 90 rau XLPE insulated conductors.
Kev tsim kho: Cov neeg ua haujlwm yog concentrically stranded, compressed 1350-H19 txhuas. Insulated nrog polyethylene lossis XLPE. Neutral messengers aer concentrically stranded 6210 AAAC, AAC lossis ACSR.
Specification:
|
Theem |
Theem |
Theem |
Kwv yees li. Zuag qhia tag nrho |
Max. DC Resistance ntawm tus neeg xyuas pib ntawm 20 degree |
|||
|
AAC plus UV-XLPE |
Compact Conductor |
UV-XLPE rwb thaiv tsev |
|||||
|
No. * Hla ntu ntawm Cores |
Tsis muaj Al Hlau |
Zuag qhia tag nrho |
Ib txwm Thickness |
Min. Thickness |
Txoj kab uas hla |
||
|
Nr. X mm 2 |
- |
mm |
mm |
mm |
mm |
mm |
Ohm/km |
|
1 X 10 |
7 |
4.05 |
1.0 |
0.8 |
6.05 |
6.05 |
3.08 |
|
1 X 16 |
7 |
4.8 |
1.2 |
0.98 |
7.2 |
7.20 |
1.91 |
|
1 X 25 |
7 |
6 |
1.2 |
0.98 |
8.4 |
8.40 |
1.20 |
|
1 X 35 |
7 |
7.0 |
1.4 |
1.16 |
9.8 |
9.80 |
0.868 |
|
1 X 50 |
7 |
8.3 |
1.4 |
1.16 |
11.1 |
11.10 |
0.641 |
|
1 X 70 |
19 |
9.8 |
1.4 |
1.16 |
12.6 |
12.60 |
0.443 |
|
1 X 95 |
19 |
11.6 |
1.6 |
1.34 |
14.8 |
14.80 |
0.320 |
|
1 X 120 |
19 |
13 |
1.6 |
1.34 |
16.2 |
16.20 |
0.253 |
|
1 X 150 |
19 |
14.6 |
1.8 |
1.52 |
18.2 |
18.20 |
0.206 |
|
1 X 185 |
36 |
16.2 |
2.0 |
1.70 |
20.2 |
20.20 |
0.164 |
|
1 X 240 |
36 |
18.4 |
2.2 |
1.88 |
22.8 |
22.80 |
0.125 |
|
2 X 10 |
7 |
4.05 |
1.0 |
0.8 |
6.05 |
12.10 |
3.08 |
|
2 X 16 |
7 |
4.8 |
1.2 |
0.98 |
7.2 |
14.40 |
1.91 |
|
2 X 25 |
7 |
6 |
1.2 |
0.98 |
8.4 |
16.80 |
1.20 |
|
2 X 35 |
7 |
7.0 |
1.4 |
1.16 |
9.8 |
19.60 |
0.868 |
|
2 X 50 |
7 |
8.3 |
1.4 |
1.16 |
11.1 |
22.20 |
0.641 |
|
2 X 70 |
19 |
9.8 |
1.4 |
1.16 |
12.6 |
25.20 |
0.443 |
|
2 X 95 |
19 |
11.6 |
1.6 |
1.34 |
14.8 |
29.60 |
0.320 |
|
2 X 120 |
19 |
13 |
1.6 |
1.34 |
16.2 |
32.40 |
0.253 |
|
2 X 150 |
19 |
14.6 |
1.8 |
1.52 |
18.2 |
36.40 |
0.206 |
|
2 X 185 |
36 |
16.2 |
2.0 |
1.70 |
20.2 |
40.40 |
0.164 |
|
2 X 240 |
36 |
18.4 |
2.2 |
1.88 |
22.8 |
45.60 |
0.125 |
|
3 X 10 |
7 |
4.05 |
1.0 |
0.8 |
6.05 |
13.07 |
3.08 |
|
3 X 16 |
7 |
4.8 |
1.2 |
0.98 |
7.2 |
15.55 |
1.91 |
|
3 X 25 |
7 |
6 |
1.2 |
0.98 |
8.4 |
18.14 |
1.20 |
|
3 X 35 |
7 |
7.0 |
1.4 |
1.16 |
9.8 |
21.17 |
0.868 |
|
3 X 50 |
7 |
8.3 |
1.4 |
1.16 |
11.1 |
23.98 |
0.641 |
|
3 X 70 |
19 |
9.8 |
1.4 |
1.16 |
12.6 |
27.22 |
0.443 |
|
3 X 95 |
19 |
11.6 |
1.6 |
1.34 |
14.8 |
31.97 |
0.320 |
|
3 X 120 |
19 |
13 |
1.6 |
1.34 |
16.2 |
34.99 |
0.253 |
|
3 X 150 |
19 |
14.6 |
1.8 |
1.52 |
18.2 |
39.31 |
0.206 |
|
3 X 185 |
36 |
16.2 |
2.0 |
1.70 |
20.2 |
43.63 |
0.164 |
|
3 X 240 |
36 |
18.4 |
2.2 |
1.88 |
22.8 |
49.25 |
0.125 |
|
4 X 10 |
7 |
4.05 |
1.0 |
0.8 |
6.05 |
14.64 |
3.08 |
|
4 X 16 |
7 |
4.8 |
1.2 |
0.98 |
7.2 |
17.42 |
1.91 |
|
4 X 25 |
7 |
6 |
1.2 |
0.98 |
8.4 |
20.33 |
1.20 |
|
4 X 35 |
7 |
7.0 |
1.4 |
1.16 |
9.8 |
23.72 |
0.868 |
|
4 X 50 |
7 |
8.3 |
1.4 |
1.16 |
11.1 |
26.86 |
0.641 |
|
4 X 70 |
19 |
9.8 |
1.4 |
1.16 |
12.6 |
30.49 |
0.443 |
|
4 X 95 |
19 |
11.6 |
1.6 |
1.34 |
14.8 |
35.82 |
0.320 |
|
4 X 120 |
19 |
13 |
1.6 |
1.34 |
16.2 |
39.20 |
0.253 |
|
4 X 150 |
19 |
14.6 |
1.8 |
1.52 |
18.2 |
44.04 |
0.206 |
|
4 X 185 |
36 |
16.2 |
2.0 |
1.70 |
20.2 |
48.88 |
0.164 |
|
4 X 240 |
36 |
18.4 |
2.2 |
1.88 |
22.8 |
55.18 |
0.125 |
Pob: Export ntoo nruas, nyiaj siv ua haujlwm abc cable
 |
 |
 |
