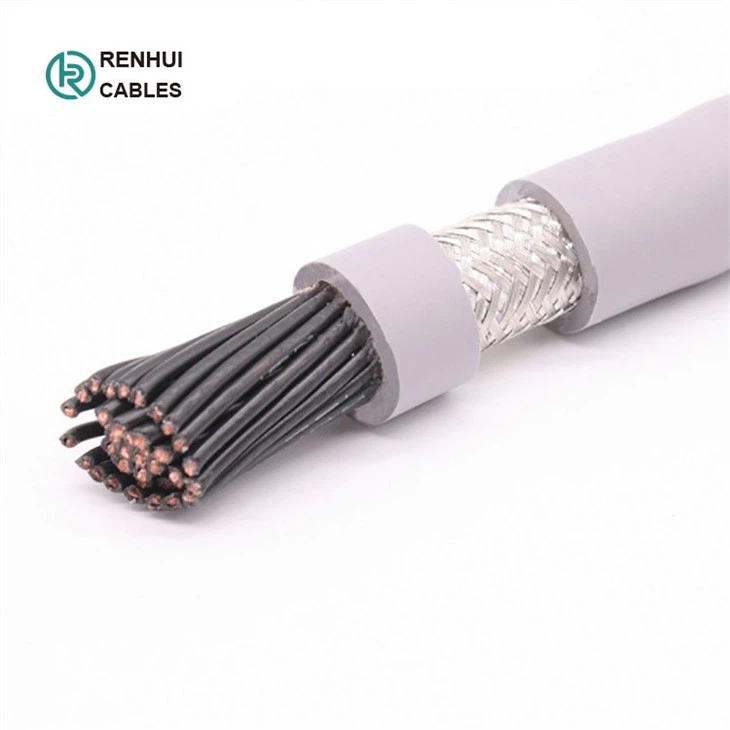

CY Tinned Copper Wire Braid Control Cable
1. Daim Ntawv Thov - CY Tinned Copper Wire Braid Control Cable
Siv los ntsuas, tswj thiab teeb liab cable rau lub tshuab cuab yeej kev lag luam, cog kev tsim kho, cua sov thiab cua txias thiab lwm yam, thiab tshwj xeeb tshaj yog tsim los ntawm cov khoom siv ruaj khov thiab cov khoom siv txawb. Lub cable muaj kev tiv thaiv zoo tiv thaiv hluav taws xob cuam tshuam los ntawm nqaim weave tinned tooj liab-xaim braid screen, uas ua kom tsis muaj kev cuam tshuam ntawm kev sib kis ntawm pulses thiab cov teeb liab hauv hluav taws xob.
 |
 |
 |
2.Standards:
Feem ntau BS6500 VDE0250
3.Cable Structure
 |
 |
- Tus coj
Class 5 annealed tooj liab conductors rau BS6360 / VDE0295
- Rwb thaiv tsev:
PVC
- Lub txaj:
PVC
- Braiding:
Tinned Copper Wire Braid (TCWB)
- Sheath:
PVC (Tim TM2 rau BS7655)
4. Kev ntsuas hluav taws xob:
300/500V
5. Kev ntsuas kub:
Flexing -15 rau ntxiv rau 70 degree
Static -35 rau ntxiv rau 70 degree
6. Yam tsawg kawg bending vojvoog:
6 x zuag diam
7.Core kev txheeb xyuas
Dub nrog tus lej Dawb. (3 core thiab saum toj no suav nrog Ntsuab / Daj)
8. Daim ntawv qhia
|
Cores & Loj mm2 |
Zuag qhia tag nrho (mm) |
Qhov hnyav (kg/km) |
|
2 X 0.5 |
5.5 |
46 |
|
3 X 0.5 |
5.8 |
55 |
|
4 X 0.5 |
6.4 |
66 |
|
5 X 0.5 |
7.2 |
78 |
|
7 X 0.5 |
8.2 |
95 |
|
12 X 0.5 |
10.0 |
155 |
|
18 X 0.5 |
11.7 |
230 |
|
25 X 0.5 |
13.8 |
320 |
|
2 X 0.75 |
6.3 |
55 |
|
3 X 0.75 |
7.0 |
67 |
|
4 X 0.75 |
7.2 |
80 |
|
5 X 0.75 |
8.0 |
100 |
|
7 X 0.75 |
9.0 |
130 |
|
12 X 0.75 |
11.5 |
210 |
|
18 X 0.75 |
13.0 |
260 |
|
25 X 0.75 |
16.0 |
430 |
|
34 X 0.75 |
17.5 |
515 |
|
42 X 0.75 |
19.0 |
600 |
|
2 X 1.0 |
7.0 |
66 |
|
3 X 1.0 |
7.3 |
80 |
|
4 X 1.0 |
8.0 |
100 |
|
5 X 1.0 |
8.5 |
125 |
|
7 X 1.0 |
9.2 |
160 |
|
12 X 1.0 |
12.5 |
260 |
|
18 X 1.0 |
14.5 |
375 |
|
34 X 1.0 |
20.0 |
650 |
|
42 X 1.0 |
21.5 |
740 |
|
2 X 1.5 |
7.5 |
85 |
|
3 X 1.5 |
8.3 |
115 |
|
4 X 1.5 |
8.7 |
150 |
|
5 X 1.5 |
9.5 |
168 |
|
7 X 1.5 |
10.8 |
210 |
|
12 X 1.5 |
13.5 |
365 |
|
18 X 1.5 |
16.5 |
525 |
|
25 X 1.5 |
19.8 |
765 |
|
34 X 1.5 |
22.0 |
940 |
|
42 X 1.5 |
23.8 |
1050 |
|
2 X 2.5 |
9.5 |
130 |
|
3 X 2.5 |
10.5 |
170 |
|
4 X 2.5 |
11.4 |
210 |
|
5 X 2.5 |
12.5 |
260 |
|
7 X 2.5 |
14.0 |
345 |
|
3 X 4.0 |
10.6 |
265 |
|
4 X 4.0 |
11.5 |
350 |
|
5 X 4.0 |
12.7 |
480 |
10.Package: Export ntoo nruas lossis ntoo thawv:
