tsawg voltage cables
1. Daim ntawv thov: tsis tshua muaj hluav taws xob cables
Cov IEC 60502-1 cables no yog siv rau cov khoom siv hluav taws xob hauv qhov hluav taws xob tsis tshua muaj hluav taws xob, Lawv tsim nyog rau kev teeb tsa hauv tsev thiab sab nraum zoov, hauv cable ducts, hauv av, hauv hluav taws xob thiab hloov chaw nres tsheb, kev faib hluav taws xob hauv zos, cov chaw tsim khoom, qhov twg tsis muaj kev pheej hmoo ntawm kev puas tsuaj.
 |
 |
 |

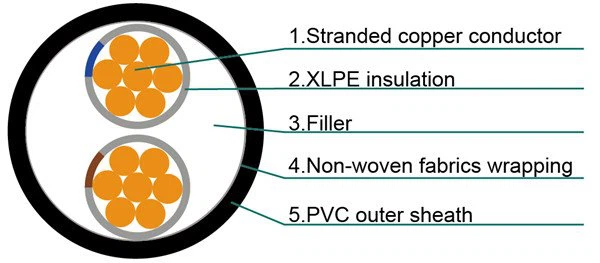

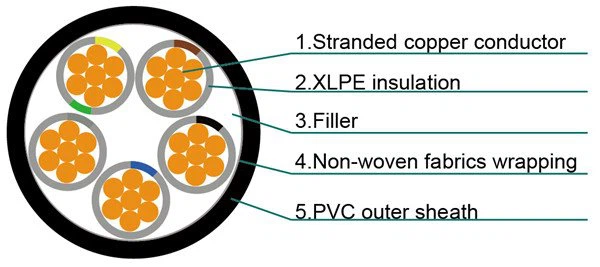

2. Kev tsim kho: qis voltage cables
-Cov neeg coj
Cov khoom siv tooj liab hauv chav kawm 1, Stranded Copper conductor Class 2 rau IEC 60228, BS EN 60228.
- rwb thaiv tsev
Cov khoom siv XLPE
- Xim Code
Xim Code (1):
1 Core: Pob tshab, Liab lossis Dub
2 Cores: Liab, Dub
3 Cores: Liab, Daj, Xiav
4 Cores: Liab, Daj, Xiav, Dub
5 Cores: Liab, Daj, Xiav, Dub, Ntsuab
Saum 5 Cores: Dub Cores nrog cov lej dawb
Xim Code (2):
1 Core: Pob tshab, Xim av lossis Xiav
2 Cores: Xim av los yog Xiav
3 Cores: Brown, Dub, Grey
4 Cores: Xiav, Brown, Dub, Grey
5 Cores: Ntsuab / Daj, Xiav, Xim av, Dub, Grey
Saum 5 Cores: Dub Cores nrog cov lej dawb
-Outer Sheath:Extruded PVC.
 |
 |
 |
3. Txuj: tsis tshua muaj hluav taws xob cables
IEC 60502-1 Kab
Cov pa luam yeeb tsawg (acc. EN 61034-2)
Nplaim retardant Acc. EN 50265-2-1
4. Cable Parameters: low voltage cables
|
Ib leeg |
|
|||
|
Nominal Cross Section |
Txoj kab uas hla ntawm tus neeg xyuas pib (Approx.) |
Nominal rwb thaiv tsev Thickness |
Nominal Sheath Thickness |
Zuag qhia tag nrho (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
1x1.5 |
1.4 |
0.7 |
1.4 |
5.6 |
|
1x2.5 |
1.8 |
0.7 |
1.4 |
6.0 |
|
1x4 |
2.3 |
0.7 |
1.4 |
6.5 |
|
1x6 |
2.8 |
0.7 |
1.4 |
7.0 |
|
1x10 |
3.6 |
0.7 |
1.4 |
7.8 |
|
1x16 |
4.5 |
0.7 |
1.4 |
8.7 |
|
1x25 |
5.6 |
0.9 |
1.4 |
10.2 |
|
1x35 |
6.7 |
0.9 |
1.4 |
11.3 |
|
1x50 |
8.0 |
1 |
1.4 |
12.8 |
|
1x70 |
9.4 |
1.1 |
1.4 |
14.4 |
|
1x95 |
11.0 |
1.1 |
1.5 |
16.1 |
|
1x120 |
12.4 |
1.2 |
1.5 |
17.8 |
|
1x150 |
13.8 |
1.4 |
1.6 |
19.8 |
|
1x185 |
15.3 |
1.6 |
1.6 |
21.8 |
|
1x240 |
17.5 |
1.7 |
1.7 |
24.4 |
|
1x300 |
19.5 |
1.8 |
1.8 |
26.7 |
|
1x400 |
22.6 |
2 |
1.9 |
30.5 |
|
1x500 |
25.2 |
2.2 |
2.0 |
33.7 |
|
1x630 |
28.3 |
2.4 |
2.2 |
37.4 |
|
1x800 |
31.9 |
2.6 |
2.3 |
41.7 |
|
1x1000 |
35.7 |
2.8 |
2.4 |
46.2 |
|
Ob lub cores |
|
|||
|
Nominal Cross Section |
Txoj kab uas hla ntawm tus neeg xyuas pib (Approx.) |
Nominal rwb thaiv tsev Thickness |
Nominal Sheath Thickness |
Zuag qhia tag nrho (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
2x1.5 |
1.4 |
0.7 |
1.8 |
9.2 |
|
2x2.5 |
1.8 |
0.7 |
1.8 |
10.0 |
|
2x4 |
2.3 |
0.7 |
1.8 |
11.0 |
|
2x6 |
2.8 |
0.7 |
1.8 |
12.0 |
|
2x10 |
3.6 |
0.7 |
1.8 |
13.6 |
|
2x16 |
4.5 |
0.7 |
1.8 |
15.4 |
|
2x25 |
5.6 |
0.9 |
1.8 |
18.4 |
|
2x35 |
6.7 |
0.9 |
1.8 |
20.6 |
|
2x50 |
8.0 |
1 |
1.8 |
23.6 |
|
2x70 |
9.4 |
1.1 |
1.8 |
26.8 |
|
2x95 |
11.0 |
1.1 |
1.9 |
30.2 |
|
2x120 |
12.4 |
1.2 |
2.0 |
33.7 |
|
2x150 |
13.8 |
1.4 |
2.2 |
37.5 |
|
2x185 |
15.3 |
1.6 |
2.3 |
41.6 |
|
2x240 |
17.5 |
1.7 |
2.5 |
46.7 |
|
2x300 |
19.5 |
1.8 |
2.6 |
51.4 |
|
2x400 |
22.6 |
2 |
2.9 |
58.9 |
|
Peb cores |
|
|||
|
Nominal Cross Section |
Txoj kab uas hla ntawm tus neeg xyuas pib (Approx.) |
Nominal rwb thaiv tsev Thickness |
Nominal Sheath Thickness |
Zuag qhia tag nrho (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
3x1.5 |
1.4 |
0.7 |
1.8 |
9.6 |
|
3x2.5 |
1.8 |
0.7 |
1.8 |
10.5 |
|
3x4 |
2.3 |
0.7 |
1.8 |
11.6 |
|
3x6 |
2.8 |
0.7 |
1.8 |
12.6 |
|
3x10 |
3.6 |
0.7 |
1.8 |
14.4 |
|
3x16 |
4.5 |
0.7 |
1.8 |
16.3 |
|
3x25 |
5.6 |
0.9 |
1.8 |
19.5 |
|
3x35 |
6.7 |
0.9 |
1.8 |
21.9 |
|
3x50 |
8.0 |
1 |
1.8 |
25.1 |
|
3x70 |
9.4 |
1.1 |
1.9 |
28.7 |
|
3x95 |
11.0 |
1.1 |
2.0 |
32.4 |
|
3x120 |
12.4 |
1.2 |
2.1 |
36.1 |
|
3x150 |
13.8 |
1.4 |
2.3 |
40.3 |
|
3x185 |
15.3 |
1.6 |
2.4 |
44.6 |
|
3x240 |
17.5 |
1.7 |
2.6 |
50.2 |
|
3x300 |
19.5 |
1.8 |
2.7 |
55.2 |
|
3x400 |
22.6 |
2 |
3.0 |
63.3 |
|
Plaub cores |
|
|||
|
Nominal Cross Section |
Txoj kab uas hla ntawm tus neeg xyuas pib (Approx.) |
Nominal rwb thaiv tsev Thickness |
Nominal Sheath Thickness |
Zuag qhia tag nrho (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
4x1.5 |
1.4 |
0.7 |
1.8 |
10.4 |
|
4x2.5 |
1.8 |
0.7 |
1.8 |
11.3 |
|
4x4 |
2.3 |
0.7 |
1.8 |
12.5 |
|
4x6 |
2.8 |
0.7 |
1.8 |
13.7 |
|
4x10 |
3.6 |
0.7 |
1.8 |
15.7 |
|
4x16 |
4.5 |
0.7 |
1.8 |
17.8 |
|
4x25 |
5.6 |
0.9 |
1.8 |
21.5 |
|
4x35 |
6.7 |
0.9 |
1.8 |
24.1 |
|
4x50 |
8.0 |
1 |
1.8 |
27.8 |
|
4x70 |
9.4 |
1.1 |
2.0 |
32.0 |
|
4x95 |
11.0 |
1.1 |
2.1 |
36.1 |
|
4x120 |
12.4 |
1.2 |
2.3 |
40.2 |
|
4x150 |
13.8 |
1.4 |
2.4 |
44.9 |
|
4x185 |
15.3 |
1.6 |
2.6 |
49.8 |
|
4x240 |
17.5 |
1.7 |
2.8 |
56.0 |
|
4x300 |
19.5 |
1.8 |
3.0 |
61.7 |
|
4x400 |
22.6 |
2 |
3.2 |
70.7 |
|
Multi cores |
|
|||
|
Nominal Cross Section |
Txoj kab uas hla ntawm tus neeg xyuas pib (Approx.) |
Nominal rwb thaiv tsev Thickness |
Nominal Sheath Thickness |
Zuag qhia tag nrho (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
5x1.5 |
1.4 |
0.7 |
1.8 |
11.2 |
|
7x1.5 |
1.4 |
0.7 |
1.8 |
12.0 |
|
10x1.5 |
1.4 |
0.7 |
1.8 |
14.8 |
|
12x1.5 |
1.4 |
0.7 |
1.8 |
15.2 |
|
14x1.5 |
1.4 |
0.7 |
1.8 |
16.0 |
|
19x1.5 |
1.4 |
0.7 |
1.8 |
17.6 |
|
21x1.5 |
1.4 |
0.7 |
1.8 |
18.4 |
|
24x1.5 |
1.4 |
0.7 |
1.8 |
20.4 |
|
30x1.5 |
1.4 |
0.7 |
1.8 |
21.6 |
|
40x1.5 |
1.4 |
0.7 |
1.8 |
26.0 |
|
48x1.5 |
1.4 |
0.7 |
1.8 |
26.4 |
|
61x1.5 |
1.4 |
0.7 |
1.9 |
29.0 |
|
5x2.5 |
1.8 |
0.7 |
1.8 |
12.2 |
|
7x2.5 |
1.8 |
0.7 |
1.8 |
13.2 |
|
10x2.5 |
1.8 |
0.7 |
1.8 |
16.4 |
|
12x2.5 |
1.8 |
0.7 |
1.8 |
16.9 |
|
14x2.5 |
1.8 |
0.7 |
1.8 |
17.7 |
|
19x2.5 |
1.8 |
0.7 |
1.8 |
19.6 |
|
21x2.5 |
1.8 |
0.7 |
1.8 |
20.6 |
|
24x2.5 |
1.8 |
0.7 |
1.8 |
22.8 |
|
30x2.5 |
1.8 |
0.7 |
1.8 |
24.1 |
|
40x2.5 |
1.8 |
0.7 |
1.9 |
29.4 |
|
48x2.5 |
1.8 |
0.7 |
1.9 |
29.9 |
|
61x2.5 |
1.8 |
0.7 |
2.0 |
32.8 |
5.Package: Export ntoo nruas.
6. Lub Hoobkas
Shandong Renhui Cable Co., Ltd. yog tsim nyob rau hauv 2010, nyob rau hauv Jinan nroog, Shandong xeev, Suav teb. Lub tuam txhab npog thaj tsam ntawm 50 txhiab square meters, sau npe nyiaj RMB 5 lab, muaj 100 tus neeg ua haujlwm thiab cov neeg ua haujlwm. Peb yog cov kws tshaj lij cable chaw tsim khoom hauv Suav teb.
Cov khoom lag luam tsuas yog npog qis thiab nruab nrab voltage cable, PVC insulated cable, XLPE insulated cable, tswj cable, kev sib txuas lus cable, roj hmab cable, mine cable, vuam cable, nkoj cable, aerial bundled cable thiab lwm yam ntsig txog customized cables. Cov cables no yog siv rau hauv fais fab metallurgy, roj & tshuaj lom neeg kev lag luam, Chaw nres tsheb fais fab, Mine, Chaw nres nkoj thiab Architectural Engineering, thiab lwm yam.
Cov khoom tau raug muag rau 50 lub teb chaws thiab cheeb tsam hauv ntiaj teb, xws li lub teb chaws Yelemees, Fabkis, Dubai, Oman, Singapore, Nyab Laj, Pakistan, Philippines, Sri Lanka, Tanzania, Yemen, Kenya, Mongolia, Russia, Algeria, Bahrain, Brazil , Chile, Cyprus, Indonesia, Iran, Malaysia.
 |
 |
 |
 |
 |
 |
 |
 |
Cim npe nrov: Tuam Tshoj low voltage cable manufacturers, lwm tus neeg, Hoobkas
