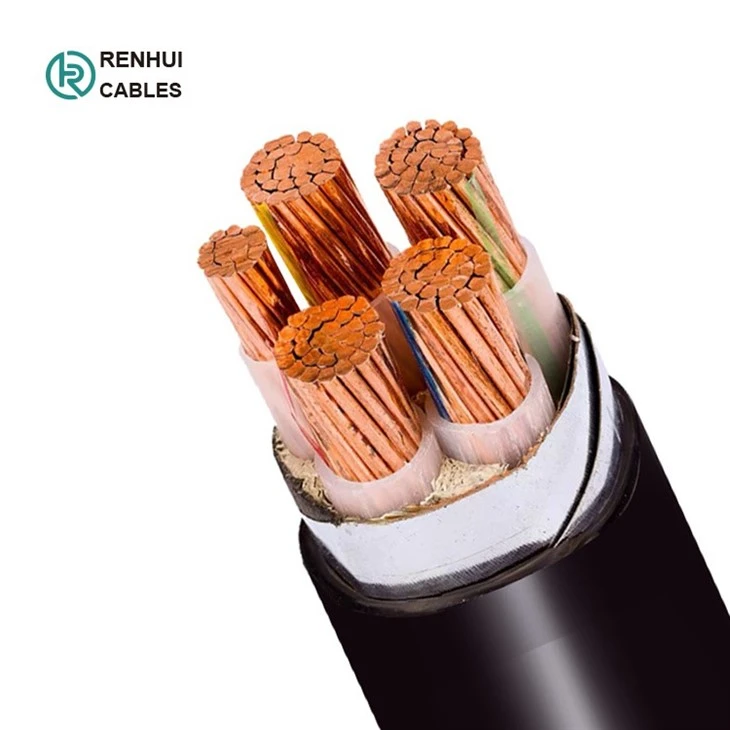

Underground Cables, Armored Cables
1. Daim ntawv thov
Cov cables no yog siv rau cov khoom siv hluav taws xob hauv qhov hluav taws xob tsis tshua muaj hluav taws xob, Lawv tsim nyog rau kev teeb tsa hauv tsev thiab sab nraum zoov, hauv cov kab hluav taws xob, hauv av, hauv hluav taws xob thiab hloov chaw nres tsheb, cov khoom siv hluav taws xob hauv zos, cov chaw tsim khoom, uas tsis muaj kev pheej hmoo ntawm kev siv tshuab. kev puas tsuaj.
 |
 |
2. Kev tsim kho
- Tus coj
Cov neeg ua haujlwm yuav tsum yog ntawm Chav Kawm 1 lossis Chav Kawm 2 ntawm cov dawb lossis hlau-coated annealed tooj liab lossis cov dawb aluminium lossis aluminium alloy, lossis ntawm Class 5 ntawm cov dawb lossis hlau-coated tooj liab raws li IEC 60228.
- Rwb thaiv tsev
Cov khoom siv XLPE thiab tuab yuav tsum yog raws li IEC 60502 lossis BS 5467 ntsuas rau 90C kev ua haujlwm tas mus li.
- Xim Code
|
Xim Code (1) |
Xim Code (2) |
||
|
1 Core |
Liab los yog Dub |
1 Core |
Xim av los yog xiav |
|
2 Cores |
Liab, Dub |
2 Cores |
Brown, Xiav |
|
3 Cores |
Liab, Daj, Xiav |
3 Cores |
Brown, Dub, Grey |
|
4 Cores |
Liab, Daj, Xiav, Dub |
4 Cores |
Xiav, Brown, Dub, Grey |
|
5 Cores |
Liab, Daj, Xiav, Dub, Ntsuab |
5 Cores |
Ntsuab / Daj, Xiav, Xim av, Dub, Grey |
|
Saum 5 Cores |
Dub Cores nrog cov lej dawb |
Saum 5 Cores |
Dub Cores nrog cov lej dawb |
Lwm cov xim tuaj yeem tsim tau raws li kev thov.
- Sib dhos / Sab hauv npog
Cov npog sab hauv tuaj yeem yog extruded lossis lapped. Rau cov kab hluav taws xob nrog lub voj voog, tshwj tsis yog cov cables uas muaj ntau tshaj tsib cores, lub lapped puab yuav tsum tau tso cai tsuas yog hais tias cov interstices ntawm cov cores tau puv. Ib tug haum binder tso cai ua ntej daim ntawv thov ntawm ib tug extruded puab npog. Cov khoom siv yog sib xws nrog cov khoom siv insulating, cov ntaub ntawv siv rau cov ntaub npog sab hauv thiab cov muab tub lim yuav tsum tsim nyog rau kev khiav hauj lwm kub ntawm lub cable thiab sib xws nrog cov khoom siv insulating.Rau halogen dawb cables, sab hauv npog thiab muab tub lim yuav tsum yog halogen dawb compound. .
- Armour
Txhuas / galvanized steel / hlau xaim siv helically hla lub puab npog raws li IEC 60502-1, los yog ob chav aluminium / steel tapes thiab tooj liab / tinned tooj liab hlau kuj tuaj yeem tsim tau raws li kev thov.
- Sab nrauv
Cov txheej txheej yuav tsum yog extruded PVC Hom ST1 / ST2 raws li IEC 60502-1, Polyethylene hom ST3 / ST7, Halogen dawb compound ST8, Polychloroprene, chlorosulfonated polyethylene los yog polymers zoo sib xws, hom SE1 kuj muaj nyob rau ntawm kev thov.
- Hluav taws xob ua haujlwm ntawm Cable Sheaths
Cov kab hluav taws xob tuaj yeem muab cov nplaim hluav taws kub tshwj xeeb PVC txheej txheej kom ua raws li cov nplaim hluav taws xob ntsuas ntawm IEC 60332-3-22, IEC 60332-3-23 thiab IEC 60332-3-24, Halogen Free khoom ua raws li IEC{{3} }/2 thiab IEC 60684-2.
3.Cable Parameters

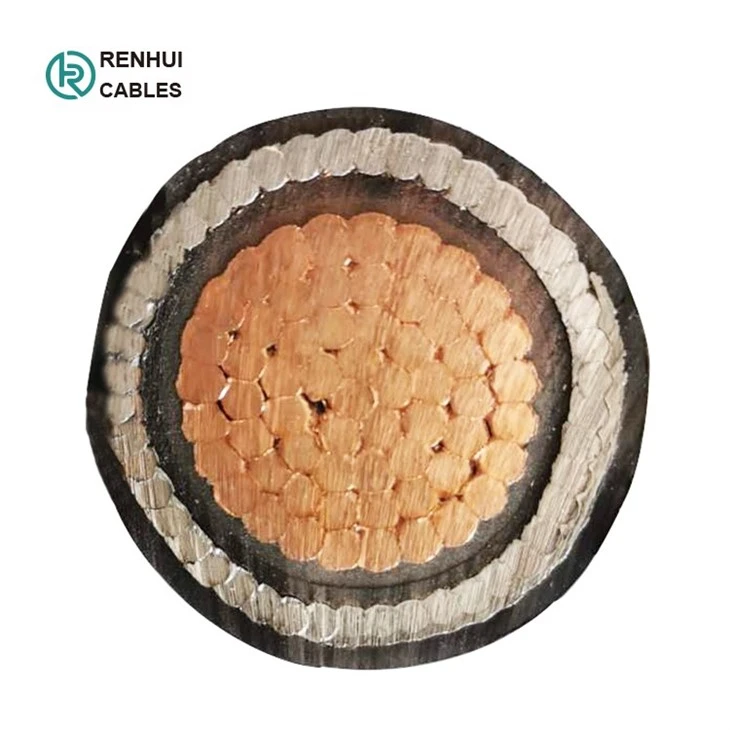

- Ib leeg tub ntxhais armored cable
|
Ib leeg (Aluminium hlau armoured) |
|
||||||
|
Nominal Cross Section |
Txoj kab uas hla ntawm tus neeg xyuas pib (Approx.) |
Nominal rwb thaiv tsev thickness |
Nominal Inner Npog thickness |
Nominal Alum Hlau dia. |
Nominal Sheath thickness |
Zuag qhia tag nrho (Approx.) |
|
|
mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
1x4 |
2.3 |
0.7 |
1.0 |
0.8 |
1.8 |
10.9 |
|
|
1x6 |
2.8 |
0.7 |
1.0 |
0.8 |
1.8 |
11.4 |
|
|
1x10 |
3.6 |
0.7 |
1.0 |
0.8 |
1.8 |
12.2 |
|
|
1x16 |
4.5 |
0.7 |
1.0 |
0.8 |
1.8 |
13.1 |
|
|
1x25 |
5.6 |
0.9 |
1.0 |
0.8 |
1.8 |
14.6 |
|
|
1x35 |
6.7 |
0.9 |
1.0 |
1.25 |
1.8 |
16.6 |
|
|
1x50 |
8.0 |
1 |
1.0 |
1.25 |
1.8 |
18.1 |
|
|
1x70 |
9.4 |
1.1 |
1.0 |
1.25 |
1.8 |
19.7 |
|
|
1x95 |
11.0 |
1.1 |
1.0 |
1.6 |
1.8 |
22.0 |
|
|
1x120 |
12.4 |
1.2 |
1.0 |
1.6 |
1.8 |
23.6 |
|
|
1x150 |
13.8 |
1.4 |
1.0 |
1.6 |
1.8 |
25.4 |
|
|
1x185 |
15.3 |
1.6 |
1.0 |
1.6 |
1.8 |
27.4 |
|
|
1x240 |
17.5 |
1.7 |
1.0 |
1.6 |
1.9 |
29.9 |
|
|
1x300 |
19.5 |
1.8 |
1.0 |
2.0 |
2.0 |
33.1 |
|
|
1x400 |
22.6 |
2 |
1.2 |
2.0 |
2.2 |
37.3 |
|
|
1x500 |
25.2 |
2.2 |
1.2 |
2.0 |
2.3 |
40.5 |
|
- Ob tug tub ntxhais armored cables
|
Ob lub cores (Galvanized steel hlau armoured) |
|
||||||
|
Nominal Cross Section |
Txoj kab uas hla ntawm tus neeg xyuas pib (Approx.) |
Nominal rwb thaiv tsev thickness |
Nominal Inner Npog thickness |
Nominal Steel Hlau dia. |
Nominal Sheath thickness |
Zuag qhia tag nrho (Approx.) |
|
|
mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
2x1.5 |
1.4 |
0.7 |
1.0 |
0.8 |
1.8 |
12.8 |
|
|
2x2.5 |
1.8 |
0.7 |
1.0 |
0.8 |
1.8 |
13.6 |
|
|
2x4 |
2.3 |
0.7 |
1.0 |
0.8 |
1.8 |
14.6 |
|
|
2x6 |
2.8 |
0.7 |
1.0 |
1.25 |
1.8 |
16.5 |
|
|
2x10 |
3.6 |
0.7 |
1.0 |
1.25 |
1.8 |
18.1 |
|
|
2x16 |
4.5 |
0.7 |
1.0 |
1.25 |
1.8 |
19.9 |
|
|
2x25 |
5.6 |
0.9 |
1.0 |
1.6 |
1.8 |
23.6 |
|
|
2x35 |
6.7 |
0.9 |
1.0 |
1.6 |
1.8 |
25.8 |
|
|
2x50 |
8.0 |
1 |
1.0 |
1.6 |
1.9 |
29.0 |
|
|
2x70 |
9.4 |
1.1 |
1.0 |
2.0 |
2.0 |
33.2 |
|
|
2x95 |
11.0 |
1.1 |
1.2 |
2.0 |
2.1 |
37.1 |
|
|
2x120 |
12.4 |
1.2 |
1.2 |
2.0 |
2.3 |
40.5 |
|
|
2x150 |
13.8 |
1.4 |
1.2 |
2.5 |
2.4 |
45.4 |
|
|
2x185 |
15.3 |
1.6 |
1.4 |
2.5 |
2.6 |
49.9 |
|
|
2x240 |
17.5 |
1.7 |
1.4 |
2.5 |
2.7 |
55.1 |
|
|
2x300 |
19.5 |
1.8 |
1.6 |
2.5 |
2.9 |
60.2 |
|
|
2x400 |
22.6 |
2 |
1.6 |
2.5 |
3.1 |
67.7 |
|

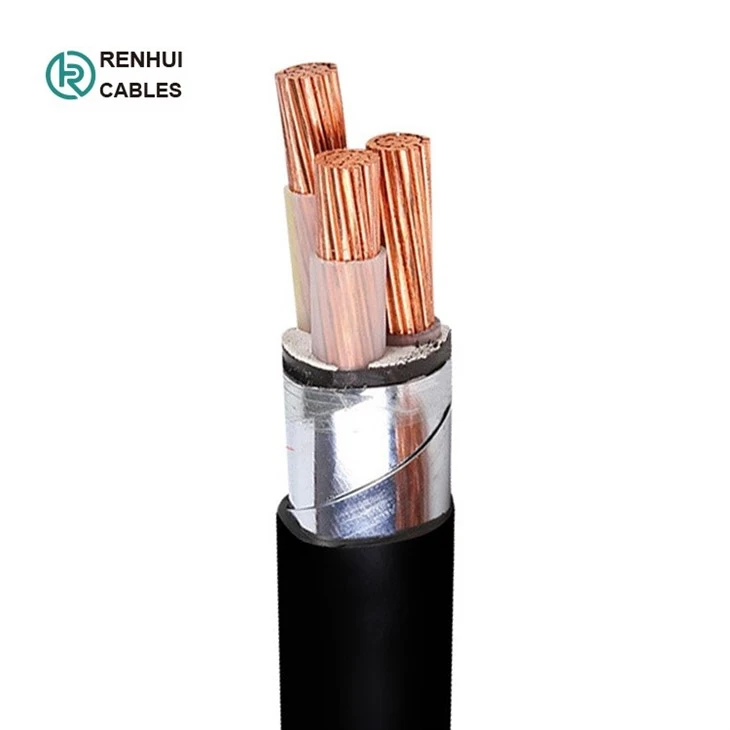

- Peb cores armored cables
|
Peb cores (Galvanized steel hlau armoured) |
|
||||||
|
Nominal Cross Section |
Txoj kab uas hla ntawm tus neeg xyuas pib (Approx.) |
Nominal rwb thaiv tsev thickness |
Nominal Inner Npog thickness |
Nominal Steel Hlau dia. |
Nominal Sheath thickness |
Zuag qhia tag nrho (Approx.) |
|
|
mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
3x1.5 |
1.4 |
0.7 |
1.0 |
0.8 |
1.8 |
13.2 |
|
|
3x2.5 |
1.8 |
0.7 |
1.0 |
0.8 |
1.8 |
14.1 |
|
|
3x4 |
2.3 |
0.7 |
1.0 |
0.8 |
1.8 |
15.2 |
|
|
3x6 |
2.8 |
0.7 |
1.0 |
1.25 |
1.8 |
17.1 |
|
|
3x10 |
3.6 |
0.7 |
1.0 |
1.25 |
1.8 |
18.9 |
|
|
3x16 |
4.5 |
0.7 |
1.0 |
1.25 |
1.8 |
20.8 |
|
|
3x25 |
5.6 |
0.9 |
1.0 |
1.6 |
1.8 |
24.7 |
|
|
3x35 |
6.7 |
0.9 |
1.0 |
1.6 |
1.8 |
27.2 |
|
|
3x50 |
8.0 |
1 |
1.0 |
1.6 |
1.9 |
30.6 |
|
|
3x70 |
9.4 |
1.1 |
1.0 |
2.0 |
2.1 |
35.2 |
|
|
3x95 |
11.0 |
1.1 |
1.2 |
2.0 |
2.2 |
39.3 |
|
|
3x120 |
12.4 |
1.2 |
1.2 |
2.0 |
2.3 |
43.0 |
|
|
3x150 |
13.8 |
1.4 |
1.4 |
2.5 |
2.5 |
48.6 |
|
|
3x185 |
15.3 |
1.6 |
1.4 |
2.5 |
2.7 |
53.0 |
|
|
3x240 |
17.5 |
1.7 |
1.4 |
2.5 |
2.8 |
58.5 |
|
|
3x300 |
19.5 |
1.8 |
1.6 |
2.5 |
3.0 |
64.0 |
|
|
3x400 |
22.6 |
2 |
1.6 |
3.15 |
3.3 |
73.5 |
|

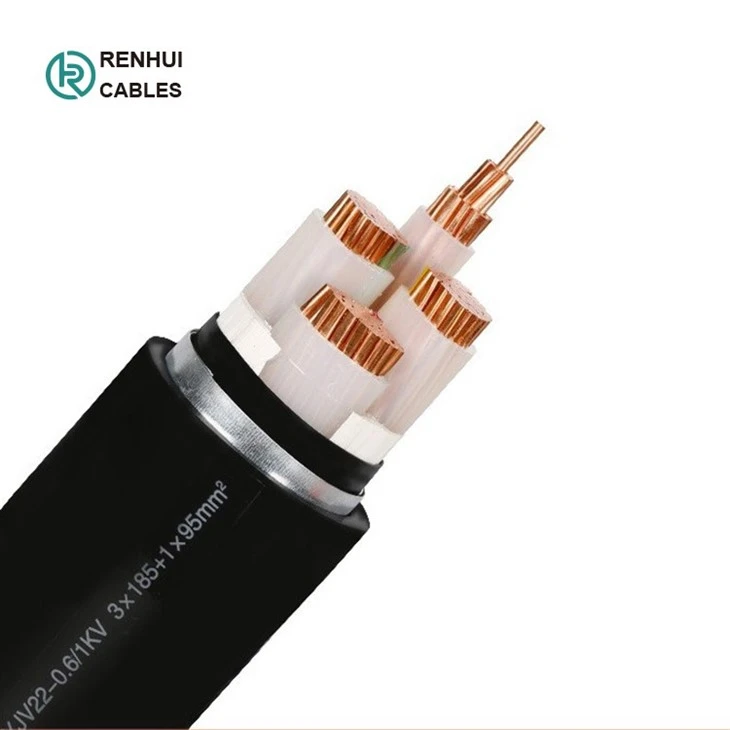

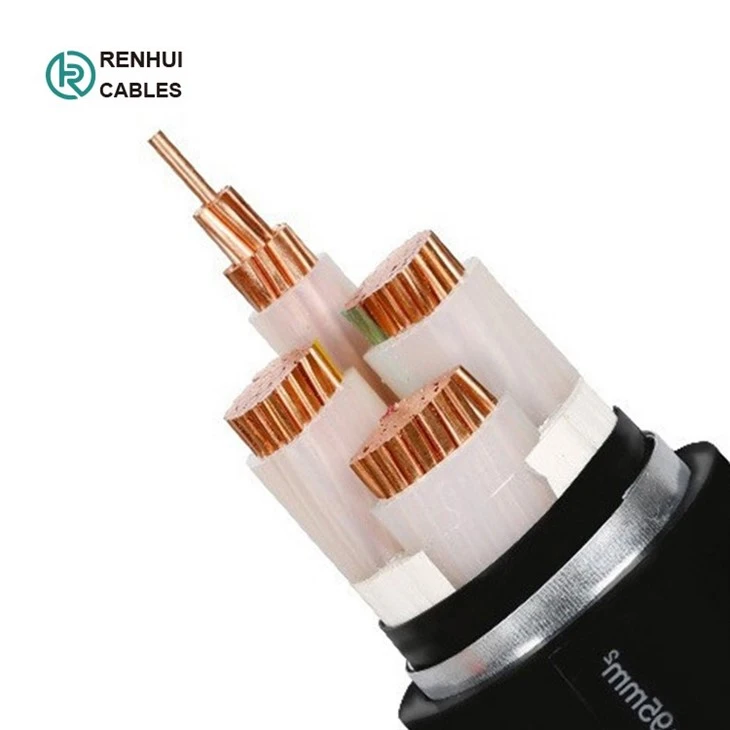

-Peb cores nrog lub ntiaj teb cores armored cables
|
Peb cores +1 (Galvanized steel hlau armoured) |
|
||||||||
|
Nominal Cross Section |
Txoj kab uas hla ntawm tus neeg xyuas pib (Approx.) |
Nominal rwb thaiv tsev thickness |
Nominal Inner Npog thickness |
Nominal Steel Hlau dia. |
Nominal Sheath thickness |
Zuag qhia tag nrho (Approx.) |
|||
|
mm^2 |
(3) hli |
(1) mm |
(3) hli |
(1) mm |
mm |
mm |
mm |
mm |
|
|
3x 16/10 |
4.5 |
3.6 |
0.7 |
0.7 |
1 |
1.6 |
1.8 |
22.7 |
|
|
3x 25/16 |
5.6 |
4.5 |
0.9 |
0.7 |
1 |
1.6 |
1.8 |
26.5 |
|
|
3x 35/16 |
6.7 |
4.5 |
0.9 |
0.7 |
1 |
1.6 |
1.9 |
29 |
|
|
3x 50/25 |
8.0 |
5.6 |
1 |
0.9 |
1 |
1.6 |
2.1 |
33 |
|
|
3x 70/35 |
9.4 |
6.7 |
1.1 |
0.9 |
1.2 |
2 |
2.2 |
38 |
|
|
3x 95/50 |
11.0 |
8.0 |
1.1 |
1 |
1.2 |
2 |
2.3 |
42.4 |
|
|
3x120/70 |
12.4 |
9.4 |
1.2 |
1.1 |
1.2 |
2 |
2.5 |
48.0 |
|
|
3x150/70 |
13.8 |
9.4 |
1.4 |
1.1 |
1.4 |
2.5 |
2.7 |
52 |
|
|
3x185/95 |
15.3 |
11.0 |
1.6 |
1.1 |
1.4 |
2.5 |
2.8 |
57.2 |
|
|
3x240/120 |
17.5 |
12.4 |
1.7 |
1.2 |
1.6 |
2.5 |
3.1 |
64 |
|
|
3x300/150 |
19.5 |
13.8 |
1.8 |
1.4 |
1.6 |
2.5 |
3.2 |
69.8 |
|
|
3x400/185 |
22.6 |
15.3 |
2 |
1.6 |
1.6 |
3.15 |
3.6 |
78.6 |
|

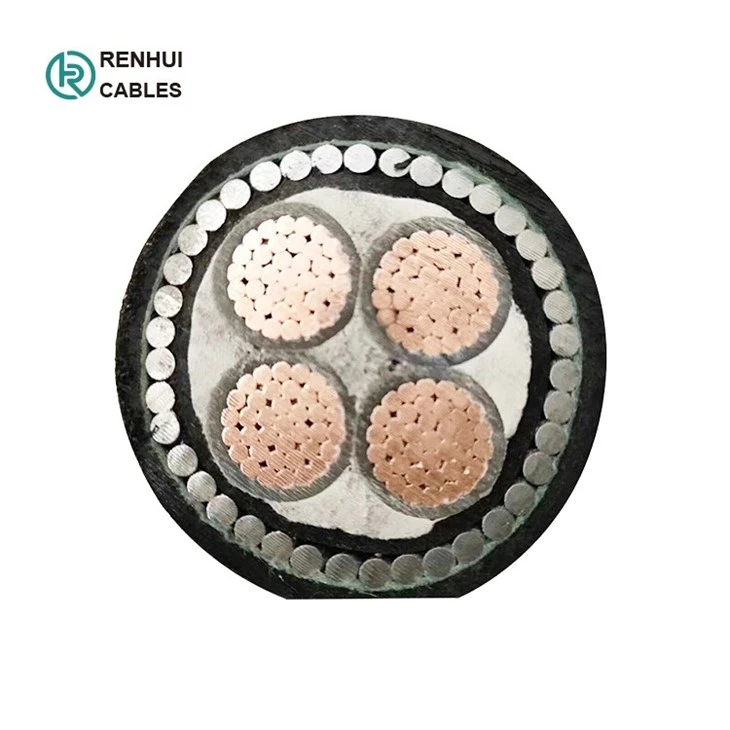

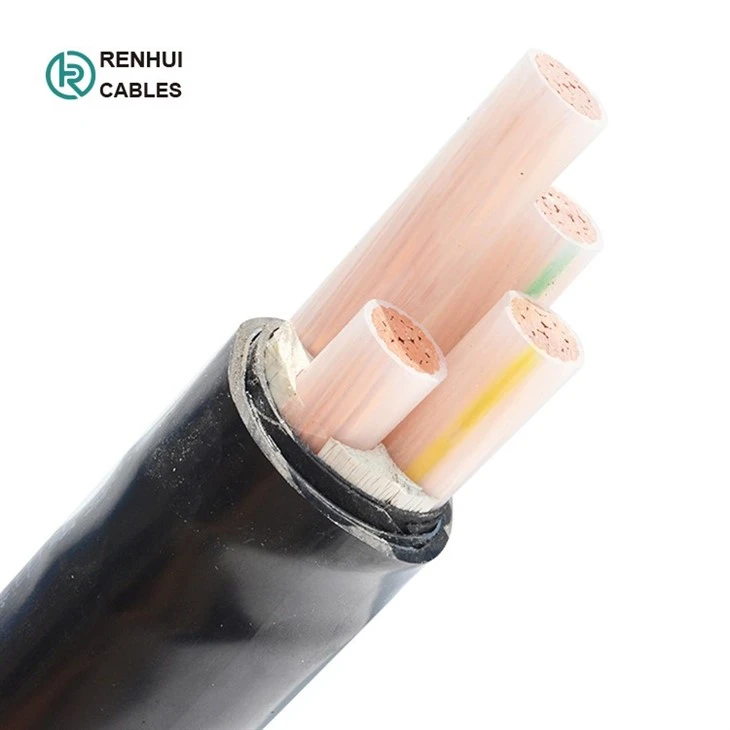

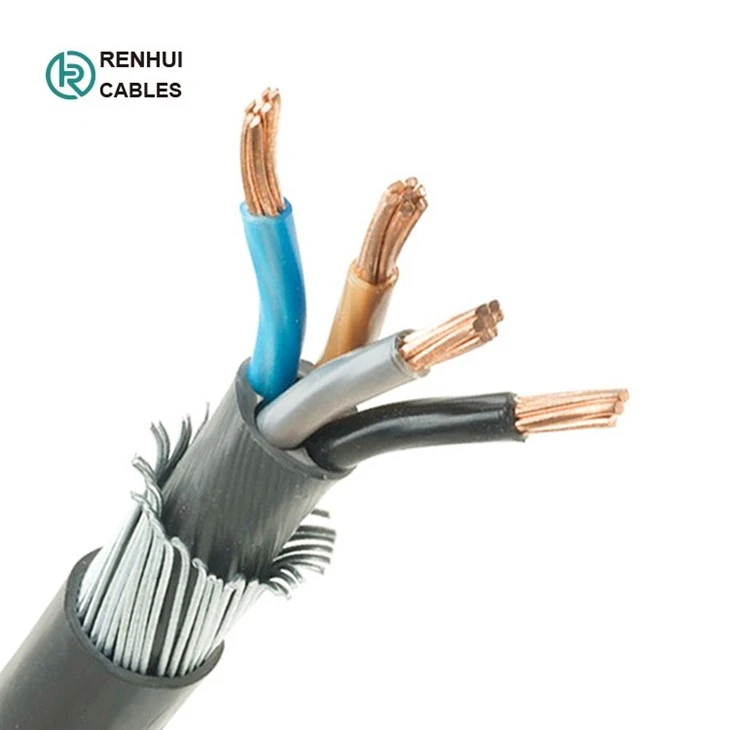

- Plaub cores, armored cable
|
Plaub cores (Galvanized steel hlau armoured) |
|
||||||
|
Nominal Cross Section |
Txoj kab uas hla ntawm tus neeg xyuas pib (Approx.) |
Nominal rwb thaiv tsev thickness |
Nominal Inner Npog thickness |
Nominal Steel Hlau dia. |
Nominal Sheath thickness |
Zuag qhia tag nrho (Approx.) |
|
|
mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
4x1.5 |
1.4 |
0.7 |
1.0 |
0.8 |
1.8 |
14.0 |
|
|
4x2.5 |
1.8 |
0.7 |
1.0 |
0.8 |
1.8 |
14.9 |
|
|
4x4 |
2.3 |
0.7 |
1.0 |
1.25 |
1.8 |
17.0 |
|
|
4x6 |
2.8 |
0.7 |
1.0 |
1.25 |
1.8 |
18.2 |
|
|
4x10 |
3.6 |
0.7 |
1.0 |
1.25 |
1.8 |
20.2 |
|
|
4x16 |
4.5 |
0.7 |
1.0 |
1.6 |
1.8 |
23.0 |
|
|
4x25 |
5.6 |
0.9 |
1.0 |
1.6 |
1.8 |
26.7 |
|
|
4x35 |
6.7 |
0.9 |
1.0 |
1.6 |
1.9 |
29.5 |
|
|
4x50 |
8.0 |
1 |
1.0 |
2.0 |
2.1 |
34.2 |
|
|
4x70 |
9.4 |
1.1 |
1.2 |
2.0 |
2.2 |
38.8 |
|
|
4x95 |
11.0 |
1.1 |
1.2 |
2.0 |
2.3 |
42.9 |
|
|
4x120 |
12.4 |
1.2 |
1.4 |
2.5 |
2.5 |
48.6 |
|
|
4x150 |
13.8 |
1.4 |
1.4 |
2.5 |
2.7 |
53.2 |
|
|
4x185 |
15.3 |
1.6 |
1.4 |
2.5 |
2.8 |
58.1 |
|
|
4x240 |
17.5 |
1.7 |
1.6 |
2.5 |
3.1 |
64.8 |
|
|
4x300 |
19.5 |
1.8 |
1.6 |
2.5 |
3.2 |
70.4 |
|
|
4x400 |
22.6 |
2 |
1.8 |
3.15 |
3.6 |
81.3 |
|
4.Production Progress
5. Daim ntawv pov thawj:
 |
 |
6.Packing:
-Steel ntoo nruas (fumigation)
Cable ntev hauv txhua lub nruas: 1000m / 2000m lossis raws li qhov xav tau ntawm cable ntev.
- Nruas loj:
Raws li ib tug cable ntev thiab thawv loj
Txhawm rau hais koj tus nqi raug, ua siab zoo qhia peb koj qhov xav tau cable ntev kom muaj nuj nqis. Ntau qhov ntau, luv nqi ntau dua npaj rau koj!
-Shipping Chaw nres nkoj:
Qingdao, lossis lwm qhov chaw nres nkoj raws li koj xav tau.
- hiav txwv freight:
FOB / C & F / CIF cov lus hais yog txhua yam muaj.
 |
 |
 |
