1.European txheem MV cables Voltage Rating
N2XSY - ib qho tooj liab tub ntxhais XLPE insulated nrog PVC oversheath 6/10kV 12/20kV 18/30kV
N2XS2Y - ib qho tooj liab tub ntxhais XLPE insulated nrog PE oversheath 6/10kV 12/20kV 18/30kV
NA2XSY - ib qho txhuas tub ntxhais XLPE insulated nrog PVC oversheath 6/10kV 12/20kV 18/30kV
NA2XS2Y - ib qho txhuas tub ntxhais XLPE insulated nrog PE oversheath 6/10kV 12/20kV 18/30kV
N2XSEY - 3 tooj liab tub ntxhais XLPE insulated nrog PVC oversheath 6/10kV
N2XS (F) 2Y - ib leeg tooj liab tub ntxhais XLPE insulated nrog dej thaiv cov hmoov thiab PE oversheath 6/10kV 12/20kV 18/30kV
N2XS (FL) 2Y - ib qho tooj liab tub ntxhais XLPE insulated nrog dej thaiv cov hmoov thiab txhuas daim kab xev nruj nreem khi rau PE sheath 6/10kV 12/20kV
NA2XS (F) 2Y - ib qho txhuas tub ntxhais XLPE insulated nrog dej thaiv cov hmoov thiab PE oversheath 6/10kV 12/20kV 18/30kV
NA2XS (FL) 2Y - ib qho txhuas tub ntxhais XLPE insulated nrog dej thaiv cov hmoov thiab txhuas daim kab xev nruj nreem khi rau PE sheath 6/10kV 12/20kV 18/30kV
2.Medium Voltage Cable Siv:

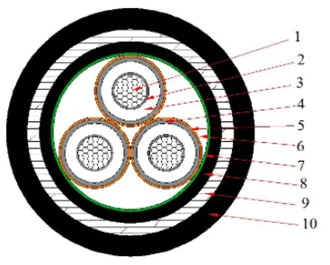

| MV Cable Txheej | MV Cable Khoom | Kab kos duab |
Tus coj | Copper los yog Aluminium - Class 1 khoom, Class 2 stranded |
|
Tus neeg xyuas pib Screen | Semi-Conductive Txheej | |
Rwb thaiv tsev | XLPE (Cross-linked Polyethylene) | |
Rwb thaiv tsev Screen | Semi-Conductive Txheej | |
Hlau Screen | Copper Wires thiab/los yog tooj liab daim kab xev | |
Sab hauv | Siv qhov twg Armor kuj siv. | |
Armor | Single Core: Aluminium Hlau / Daim kab xev | |
Txheej txheej | LDPE, MDPE (Low / Medium Density Polyethylene), PVC (Polyvinyl Chloride), LSZH (tsawg haus luam yeeb Zero Halogen) |
3.Khoom Txheem
IEC 60502-2 Fais fab cables nrog extruded rwb thaiv tsev thiab lawv cov khoom siv rau cov ntsuas hluav taws xob ntawm 1 kV (Um=1.2kV) txog 30kV (Um=36kV) - Ntu 2: Cables rau cov ntsuas hluav taws xob ntawm 6 kV(Um=7.2kV) thiab 30 kV(Um{12}}kV).
4.PackageKhoom siv:
Ntoo nruas, steel ntoo nruas (fumigation)
Cable ntev hauv txhua lub nruas: 500m / 1000m lossis raws li qhov xav tau ntawm cable ntev.
